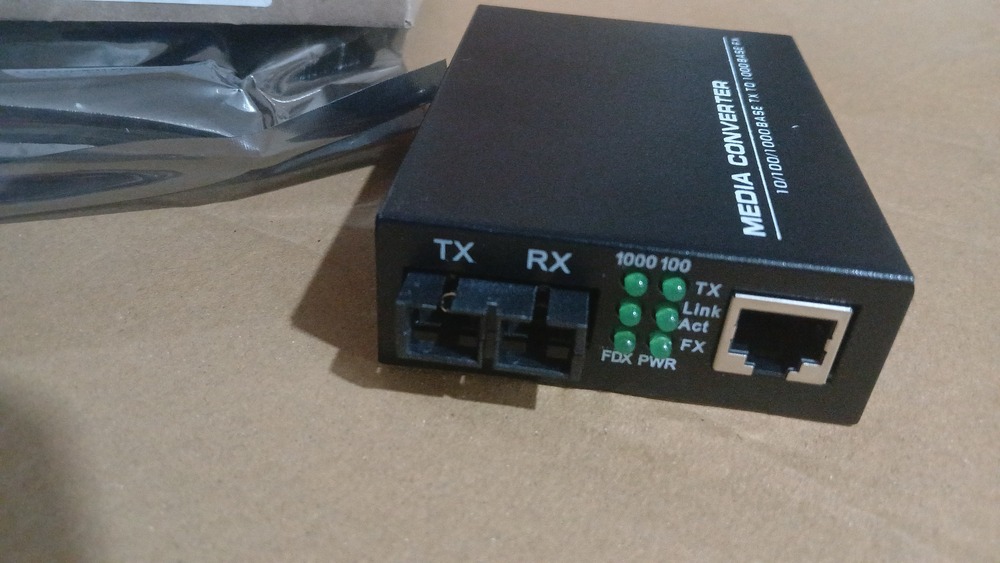

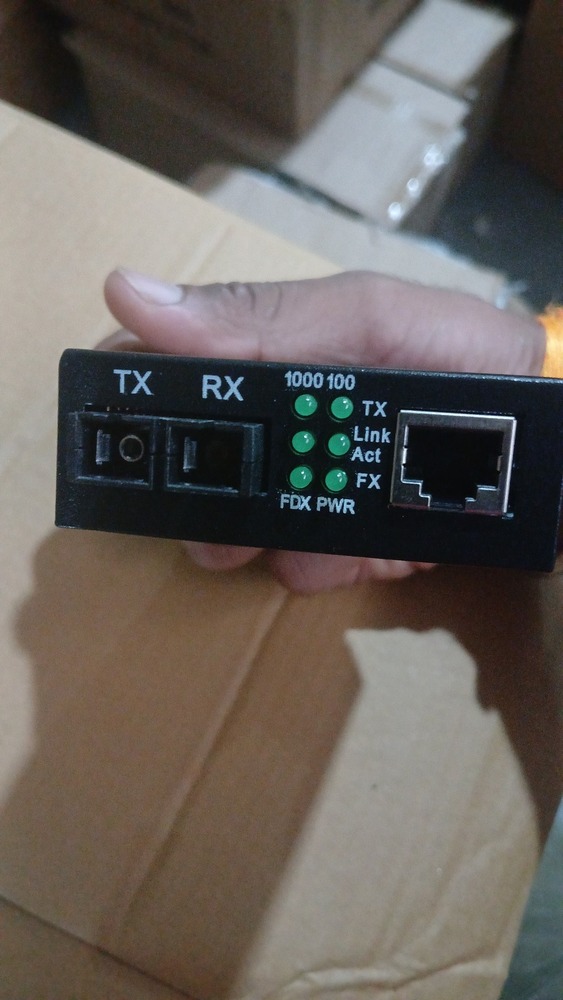

1G Media Converter

About 1G Media Converter

Introducing the INF-BIDI, a high-performance bidi 1000M media converter with asimplex SC connector for up to 20km transmission. This powerful device supportsseamless switching between 10/100/1000Base-T and 1000Base-SX/LX, along with a1.25Gbps full duplex fiber port and a 110/100/1000M adaptive Ethernet port.Equipped with MDI/MDI-X and full/half duplex adaptivity, it offers versatile connectivity options. Each port features a complete LED indicator light for ease of use. Theconverter supports IEEE802.1d Spanning Tree and high-performance QoS on eachport. With a 1*9 fixed fiber module or optional SFP slot, it can handle 9K JumboPackets, ensuring swift data transmission and data isolation. The 6C-BIDI-0410A requires no configuration, operates instantly upon powering up, and utilises a low power consumption chip with a built-in heat sink for long-lasting, efficient operation.

Key Features:

Support the switch between 10/100/1000Base-T and 1000Base-SX/LX

1*1.25Gbps full duplex fiber port, 1*10/100/1000M adaptive Ethernet port

Support 10/100/1000M rate, support MDI/MDI-X adaptive, support full/halfduplex adaptive

Each port has the complete LED Indicator light Support IEEE802.1d Spanning Tree

Support high performance QoS function on each port

1*9 fixed fiber module or SFP slot optionalSupport 9K bytes Jumbo Packet

Low time delay, data isolation function

ZTP, Require no configuration and

Low power consumption chip with heat sink built in to ensure longtime efficient operation.
